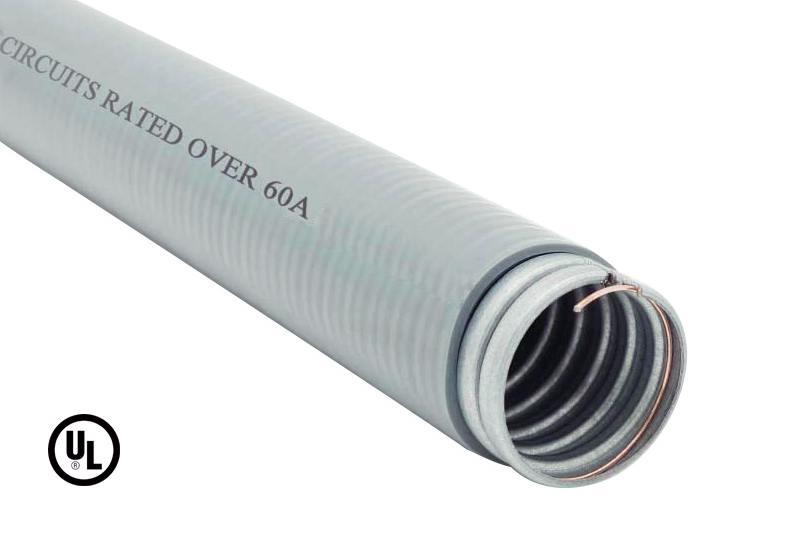

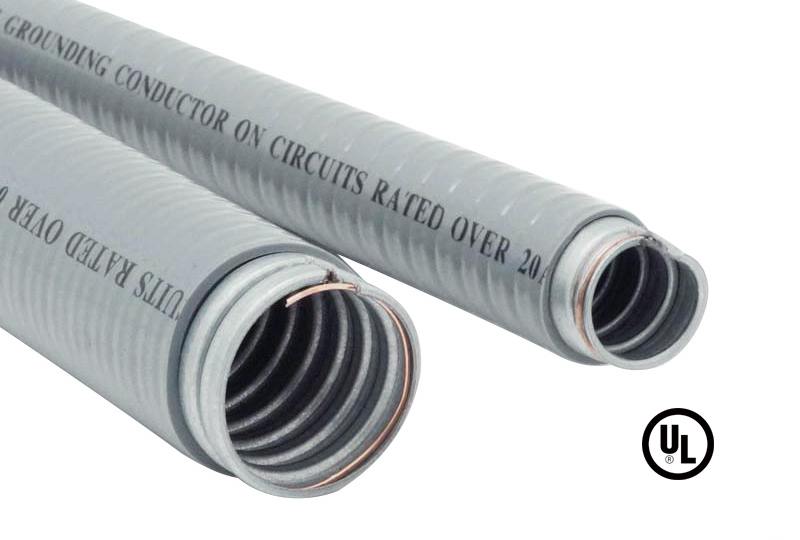

Liquid Tight Conduit is defined as a raceway of circular cross-section having a watertight, non-metallic, sunlight resistant outer jacket over an internal flexible metal jacket with associated couplings, connectors and fittings for mounting electrical conductors. Liquid Tight Conduit is a type of conduit designed to protect electrical cables from moisture, dust, and other environmental factors. It is commonly used in both indoor and outdoor applications where exposure to harsh conditions is a concern.
Liquid tight flexible conduit is a type of electrical conduit used to protect wiring from moisture and other environmental factors. It is commonly made from a flexible material such as PVC, and is typically used in applications where a high degree of flexibility is required, such as in outdoor or underground installations.
The liquid tight nature of this type of conduit is achieved through the use of a special coating or jacketing material that is resistant to moisture and other types of liquids. This helps to ensure that the wiring remains protected even in wet or humid environments.
Liquid tight flexible conduit is often used in applications such as outdoor lighting, industrial machinery, and other situations where flexibility and protection from the elements are essential. It is also commonly used in areas where there is a risk of exposure to chemicals or other hazardous substances.
Application of Liquid Tight Flexible Metal Conduit
Purpose and Usage of Liquid Tight Conduit:
Outdoor and Industrial Environments: Liquid tight conduit is commonly employed in outdoor and industrial settings.
Protection Against Liquids: It is chosen in places like agricultural and manufacturing facilities where traditional conduit might be susceptible to damage from water or other liquids.
Underground and Underwater Installations: This type of conduit finds application in underground and underwater electrical installations.
Marine Environments: Liquid tight conduit is also utilized in marine environments, demonstrating its resistance to water-related challenges.
Electrical Circuit Protection:
Voltage Compatibility:
Liquid tight conduit is suitable for safeguarding circuits with 600 volts or lower.
UL Certification Requirement: Its use is recommended in locations where UL (Underwriters Laboratories) certification is mandated.
Diverse Applications
This includes a range of settings such as commercial buildings, industrial/power plants, shipyards, marine or boat installations, computer rooms, and similar environments.
In summary, liquid tight conduit is a versatile solution primarily chosen for its ability to protect electrical circuits in challenging environments, including those with exposure to water or liquids. It serves a diverse range of applications, meeting the requirements for both voltage compatibility and certification standards set by organizations like UL.
Liquid Tight Conduit and Liquid Tight Flexible Metal Conduit are essential components for any electrical installation that requires protection against moisture, dust, and physical damage. Whether you’re working on a residential, commercial, or industrial project, our range of high-quality conduits will ensure your electrical systems are safe, reliable, and durable.Explore our selection today and discover why we are the trusted choice for electrical conduitsolutions. Contact us for more information.

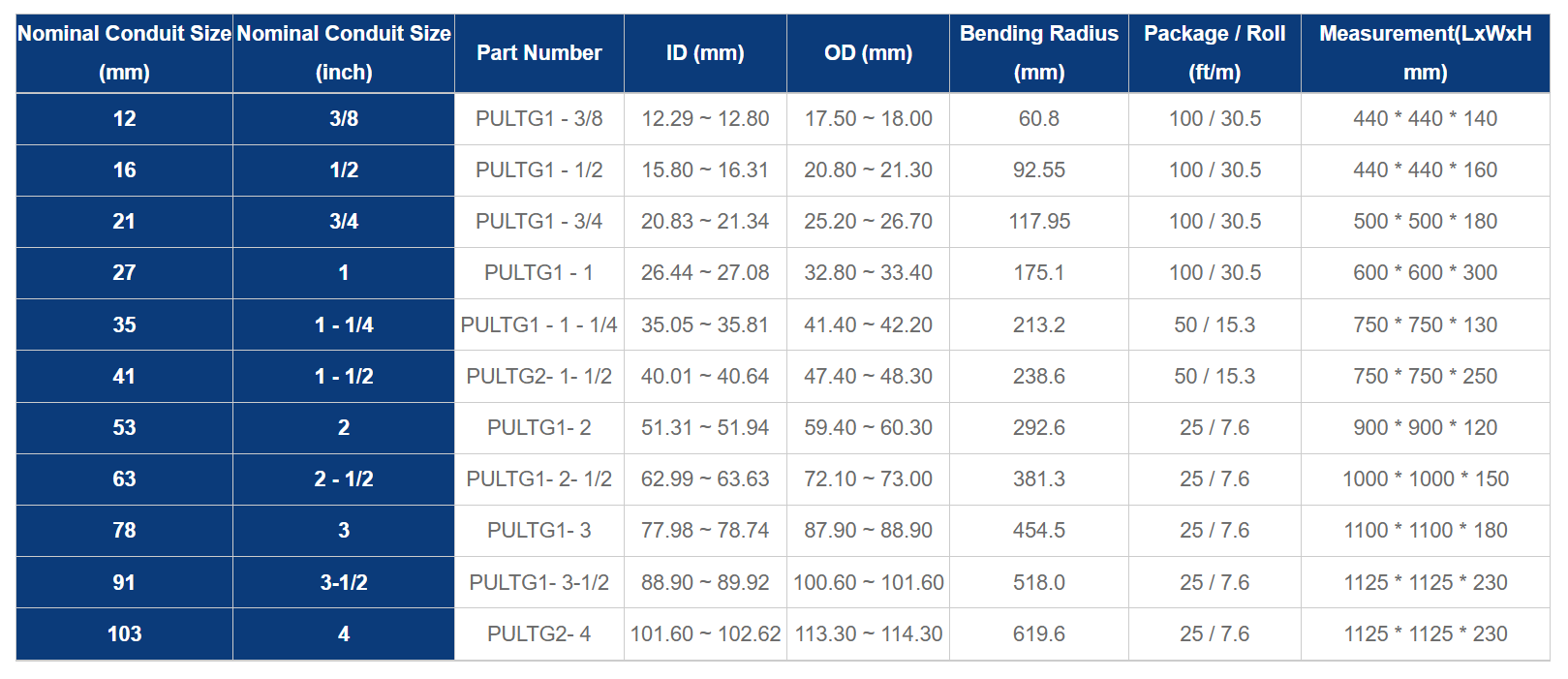

Parameter information of Liquid Tight Flexible Metal Conduit

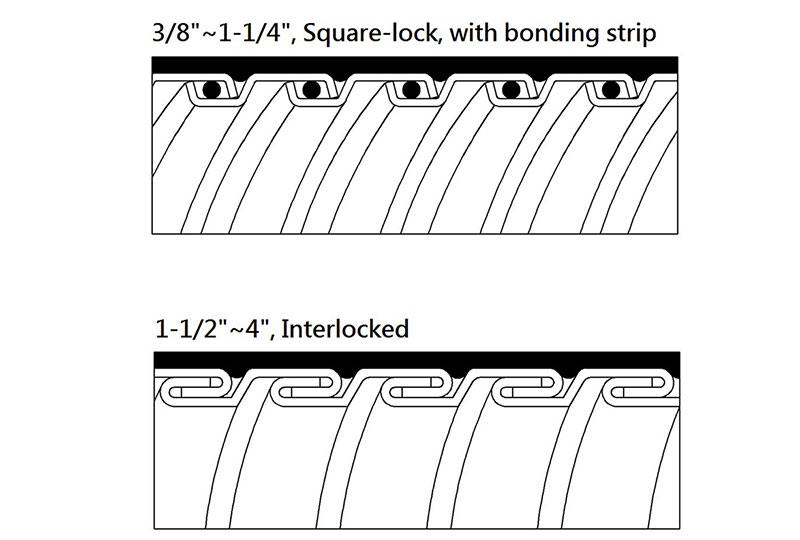

Material: Galvanized Steel + PVC Jacket
Temperature Range:
105℃ Dry, 60℃ Wet, 70℃ Oil
80℃ Dry, 60℃ Wet, 70℃ Oil
60℃ Dry, 60℃ Wet, 60℃ Oil (for cUL)
IP Rating:
IP 40 (Fit with connector series: S52)
IP 66 (Fit with connector series: S50, S51 & S53)
Jacket Color: Grey (Standard), other colors are available by consult.
Flexibility: Medium
Fire Retardant:Self-extinguishing
UV Resistance:Yes
RoHS Compliance:Yes
Certificate:
UL Listed. (sizes 1/2 in. through 4in.)
Conforms to UL standard ANSI/UL-1 for flexible metal conduit
according EN45545-2,EN45545-3.
Suitable for use in Hazardous (Classified) Locations :
NEC Article 501.10 (B) (2) & 501.30 (B) Class I Div. 2
NEC Article 502.10 (A) (2) & 502.30 (B) Class II Div. 1; 502.10 (B) (2) Class II Div. 2
NEC Article 503.10 (A) (2) & 503.30 (B) Class III Div. 1; 503.10 (A) (2) Class III Div. 2
