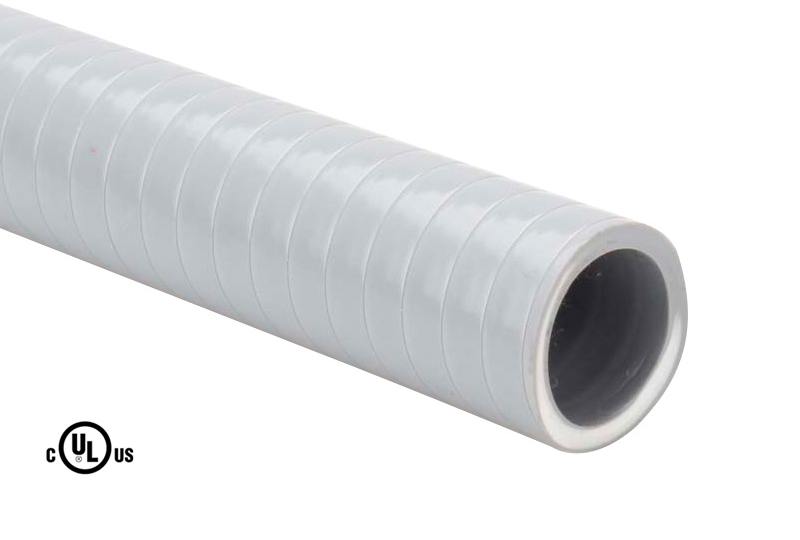

Liquid Tight Non-Metallic Flexible Conduit – PLFNCB Series

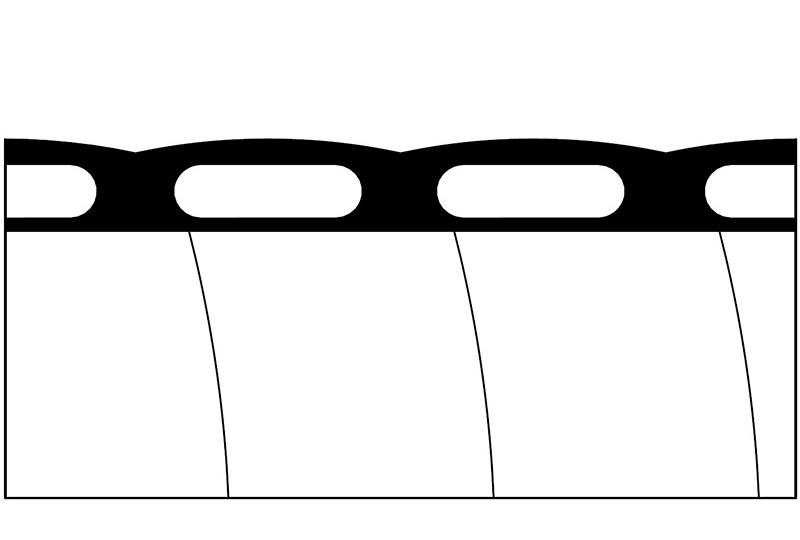

Liquid tight non-metallic flexible conduit, PLFNCB series is LFNC-B type and made of thermoplastic polyvinyl chloride (PVC) with smooth inside and outside surface. The material is compliant with RoHS requirement and featured to resist UV, age and oil. The whole size range is certified by UL laboratory according to UL 1660 standard. A reinforce member is embedded in the conduit wall to offer the performance of self-support and crush resistance. This series of conduit is qualified to meet with the wiring demand of NEC electric code and in light weight. The best efficiency of water proof for whole wiring system is able to achieve by connected with the liquid tight fitting series P50, P53, S50 and S53.

Liquid Tight Non-Metallic Flexible Conduit is a type of conduit used for protecting electrical wiring in environments where moisture, water, oils, and other liquids may be present. Unlike traditional metal conduits, this conduit is made from non-metallic materials such as PVC (Polyvinyl Chloride), making it lightweight, corrosion-resistant, and flexible.

The conduit features a special construction that provides a liquid-tight seal, preventing liquids from penetrating the conduit and reaching the enclosed wires. This helps to safeguard the electrical system from corrosion, short circuits, and other hazards associated with moisture exposure.

This type of conduit is suitable for various electrical wiring applications, including lighting fixtures, power distribution, HVAC systems, and data communications. Its non-metallic construction makes it resistant to corrosion and chemical exposure, while its liquid-tight design ensures reliable protection against moisture ingress.

Material：Thermoplastic Polyvinyl Chloride (PVC)

Temperature Range :

UL：-18℃~+80℃ Dry, 60℃ Wet, 70℃ Oil

cUL：-18℃~+80℃ Dry, 60℃ Wet, 75℃ Oil

IP Rating : IP 68 (Fit with connector series: P50, P53, S50 & S53)

Color : Grey

Flexibility : Medium

Fire Retardant : Self-extinguishing

UV Resistance : Yes

RoHS Compliance : Yes

Certificate : cULus,according EN-45545-2,EN45545-3.
